Adjustable Balcony and Terrace Drain with Tilable Frame

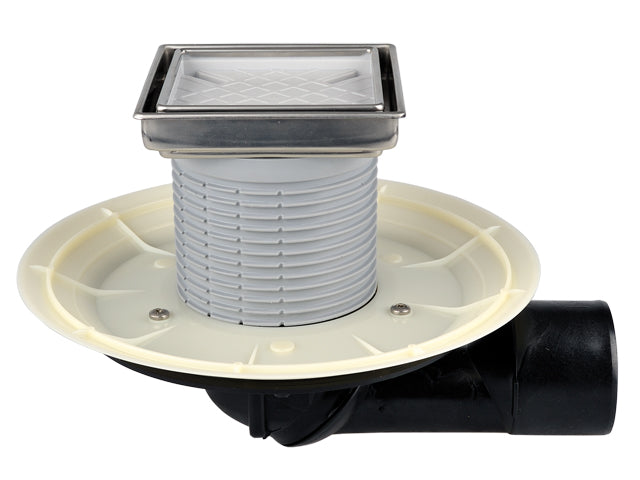

Adjustable Balcony and Terrace Drain with Tilable Frame
Balcony and terrace drain with swivelling ball-joint outlet for horizontal or vertical pipe connection, frost-proof flap seal and adjustable tile-insert frame (10–80 mm). A deep pre-installed construction cover is included.
Technical specifications
- HL model: HL80-3020
- Application: Balcony and terrace drainage
- Outlet orientation: Adjustable ball-joint (horizontal or vertical)
- Outlet sizes: DN50 / DN75
- Body and component materials: PP; PE
- Waterproofing connection: Flanged
- Grate / cover: Tilable stainless-steel frame 132 × 132 mm; tile insert 112 × 112 mm
- Trap / seal: Frost-proof flap seal
- Flow capacity: 0.80 l/s
- Installation height: 119 mm
- Load class: K3 – 300 kg
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL80-3020 | DN50 / DN75 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
