HL800 Pipe Sleeve with Bitumen Collar
HL800 Pipe Sleeve with Bitumen Collar
HL800 pipe sleeves seal individual service-pipe penetrations through walls or foundation slabs while providing a connection to bitumen waterproofing. The range combines an elastomer sealing element, a pre-welded bitumen collar and a retaining locknut for plastic, cast-iron or stainless-steel pipes.
Technical specifications
| Application | Waterproofing and sealing of single pipe penetrations through basement walls and foundation slabs |
|---|---|
| HL product family | HL800 |
| Construction | Elastomer sealing element, pre-welded bitumen collar and retaining locknut |
| Compatible pipes | Plastic, cast iron and stainless steel |
| Available pipe sizes | Selected Ø32–165 mm sizes; choose the article matching the pipe diameter |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Configuration / dimensions | HL specification and drawing |
|---|---|---|
| HL800/32 | Pipe diameter 32 mm; Weight 0.81 kg | Official HL product page | Technical drawing (PDF) |
| HL800/40-50 | Pipe diameter 40–50 mm; Weight 0.81 kg | Official HL product page | Technical drawing (PDF) |

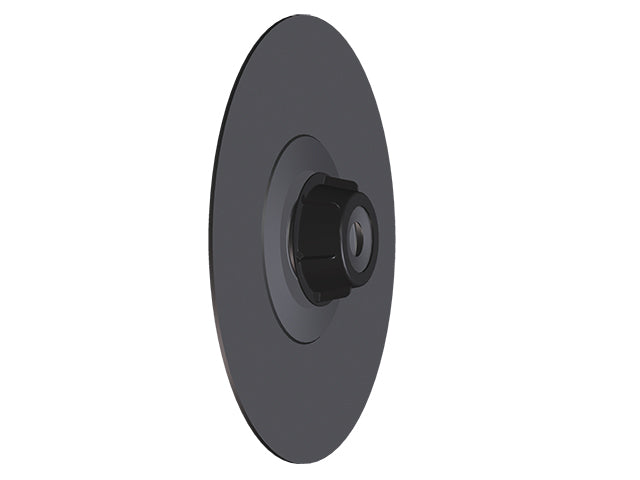

| HL800/63-75 | Pipe diameter 63–75 mm; Weight 0.92 kg | Official HL product page | Technical drawing (PDF) |
| HL800/110 | Pipe diameter 110–115 mm; Weight 1.7 kg | Official HL product page | Technical drawing (PDF) |
| HL800/125 | Pipe diameter 125–130 mm; Weight 1.8 kg | Official HL product page | Technical drawing (PDF) |

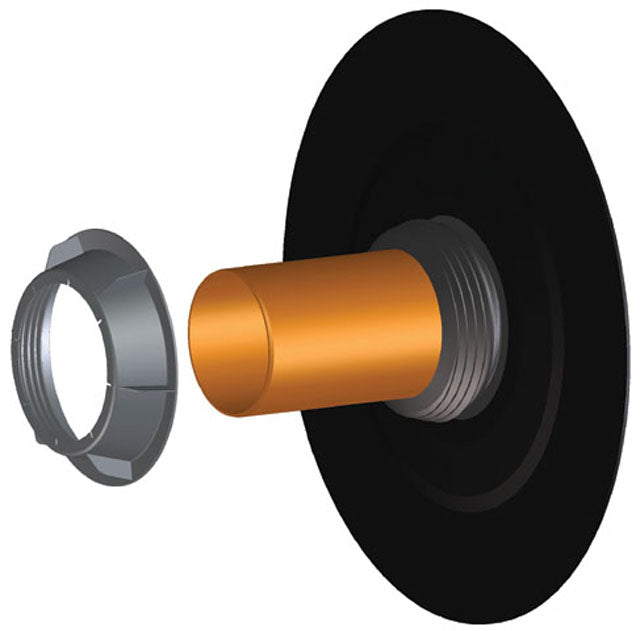

| HL800/160 | Pipe diameter 160–165 mm; Weight 2.1 kg | Official HL product page | Technical drawing (PDF) |
For exact dimensions and manufacturer documentation, refer to the linked HL product pages and technical drawings.
