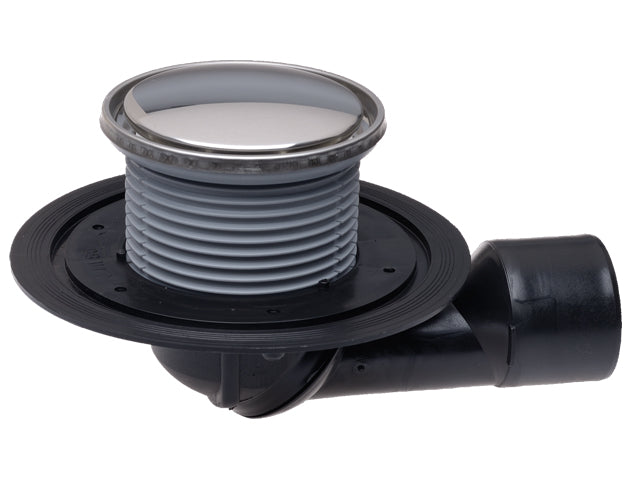

Adjustable Balcony and Terrace Drain with Round Stainless Steel Grate
Adjustable Balcony and Terrace Drain with Round Stainless Steel Grate
Balcony and terrace drain with swivelling ball-joint outlet for horizontal or vertical pipe connection, waterproofing flange, frost-proof flap seal and round stainless-steel cover. The extension adjusts from 20 to 73 mm.
Technical specifications
- HL model: HL80R
- Application: Balcony and terrace drainage
- Outlet orientation: Adjustable ball-joint (horizontal or vertical)
- Outlet sizes: DN50 / DN75
- Body and component materials: PP; PE
- Waterproofing connection: Flanged
- Grate / cover: Round stainless-steel plate Ø112 mm; frame Ø133 mm
- Trap / seal: Frost- and drought-proof flap seal
- Flow capacity: 0.80 l/s
- Installation height: 103 mm
- Load class: K3 – 300 kg
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL80R | DN50 / DN75 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
