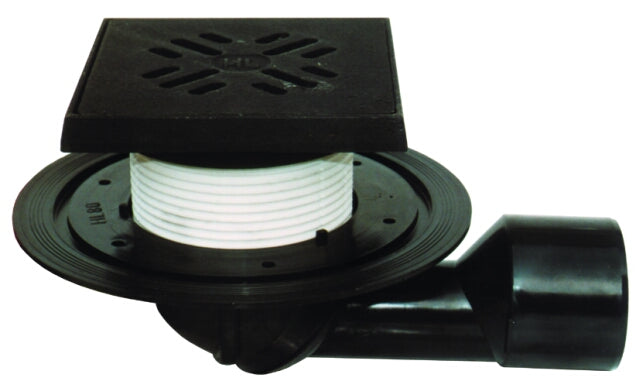

Adjustable Ball-Joint Floor Drain with Cast-Iron Grate
Adjustable Ball-Joint Floor Drain with Cast-Iron Grate
Adjustable ball-joint floor drain for compatible sanitary drainage installations, with DN50 / DN75 connection(s). This HL version features cast-iron grate and conventional trap seal.
Technical specifications
| Application | Sanitary drainage / floor drainage |
|---|---|
| Installation | Adjustable ball-joint |
| Article code(s) | HL81.1G |
| Drainage connection | DN50 / DN75 |
| Drain configuration | Floor drain |
| Trap / odour protection | Conventional trap seal |
| Grate / finish | Cast-iron grate |
| Waterproofing interface | Connection flange / installation interface |
| Rated flow capacity | 0.50 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL81.1G | DN50 / DN75 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
