HL83 Waterproofing Kits

HL83 Waterproofing Kits

Configuration

HL83 waterproofing kits offer membrane and flange configurations for compatible drain bodies.

Technical specifications

Application Waterproofing / sealing connection
HL product family HL83
Available article codes HL83, HL83.0, HL83.H, HL83.M, HL83.P, HL83.PP
Available configurations EPDM collar 400 × 400 mm; Clamping ring, without membrane; Bitumen membrane Ø400 mm; Fleece-laminated membrane; PVC flange Ø287 mm; PP flange Ø287 mm
Variant selection Select a configuration to choose the corresponding HL article number
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Configuration / dimensions HL specification and drawing

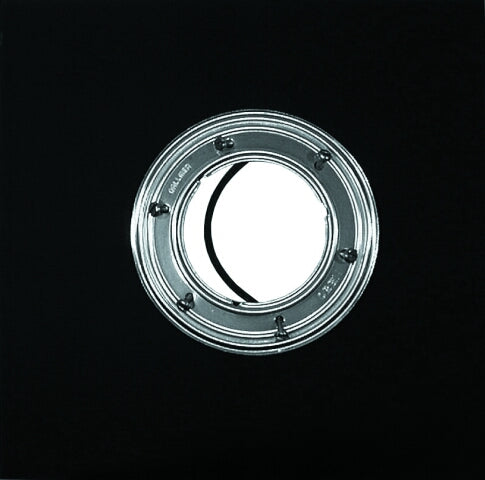

HL83 EPDM collar 400 × 400 mm — 196 × 114 mm / Ø400 mm; Material: Stainless steel, EPDM; Weight: 440 g Official HL product page | Technical drawing (PDF)

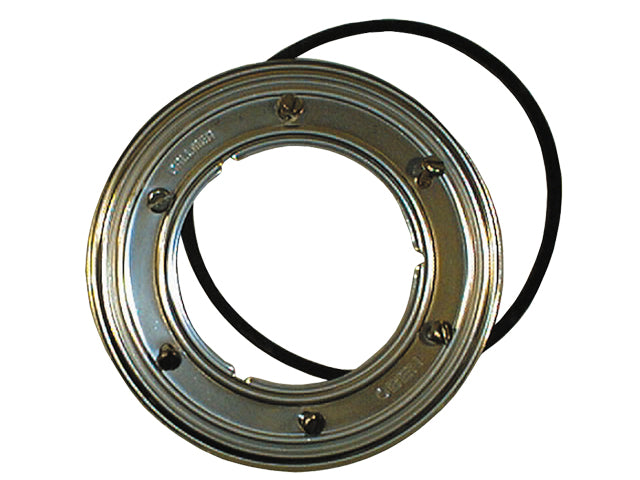

HL83.0 Clamping ring, without membrane — 196 × 114 mm; Material: Stainless steel; Weight: 245 g Official HL product page | Technical drawing (PDF)

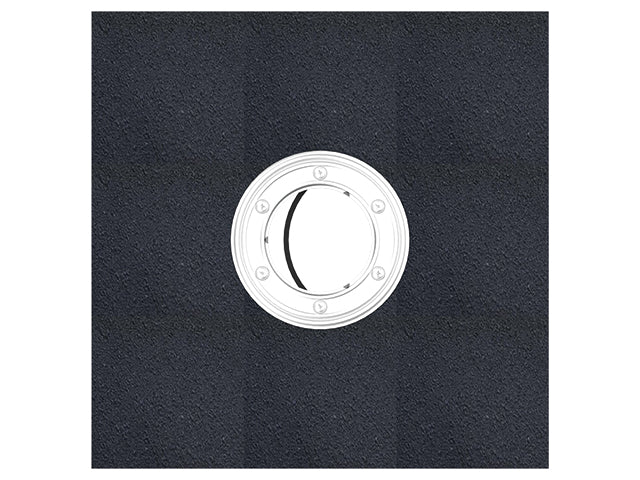

HL83.H Bitumen membrane Ø400 mm — 196 × 114 mm / Ø400 mm; Material: Stainless steel, bitumen; Weight: 1560 g Official HL product page | Technical drawing (PDF)

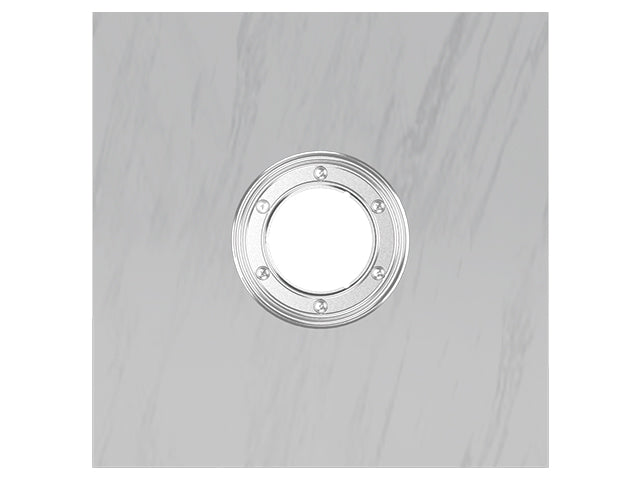

HL83.M Fleece-laminated membrane — 196 × 114 mm / Ø400 mm; Material: Stainless steel, fleece-laminated foil; Weight: 281 g Official HL product page | Technical drawing (PDF)
HL83.P PVC flange Ø287 mm — Ø287 mm; Material: PVC; Weight: 425 g Official HL product page | Technical drawing (PDF)

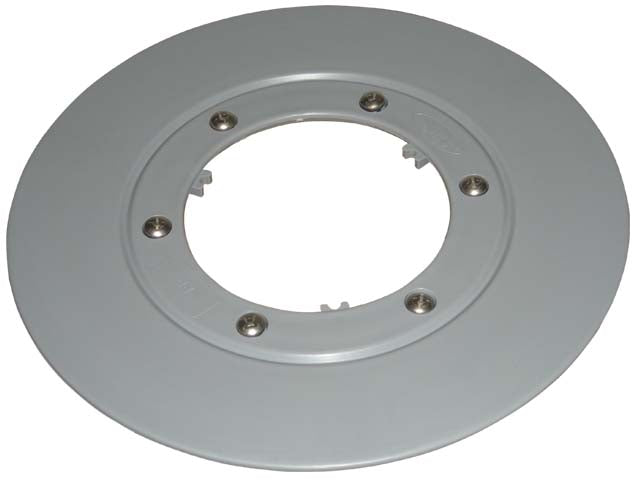

HL83.PP PP flange Ø287 mm — Ø287 mm; Material: PP; Weight: 650 g Official HL product page | Technical drawing (PDF)

For exact dimensions and manufacturer documentation, refer to the linked HL product pages and technical drawings.
