HL8500 Ø146 Drain Extensions
HL8500 Ø146 Drain Extensions
HL8500 extensions offer standard flange and bitumen-waterproofing configurations for compatible balcony and terrace drains.
Technical specifications
| Application | Drain / outlet extension |
|---|---|
| HL product family | HL8500 |
| Available article codes | HL8500, HL8500H |
| Available configurations | Flange Ø239 mm and O-ring; Bitumen flange |
| Variant selection | Select a configuration to choose the corresponding HL article number |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Configuration / dimensions | HL specification and drawing |
|---|---|---|

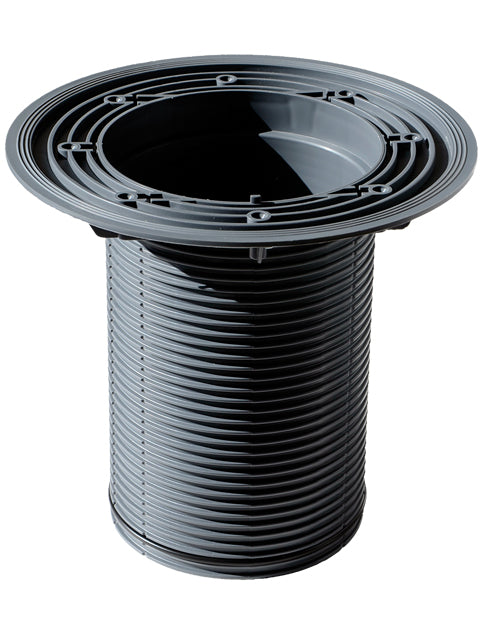

| HL8500 | Flange Ø239 mm and O-ring — Ø146 mm / flange Ø239 mm; 200 mm; Material: See manufacturer product page; Weight: 320 g | Official HL product page | Technical drawing (PDF) |

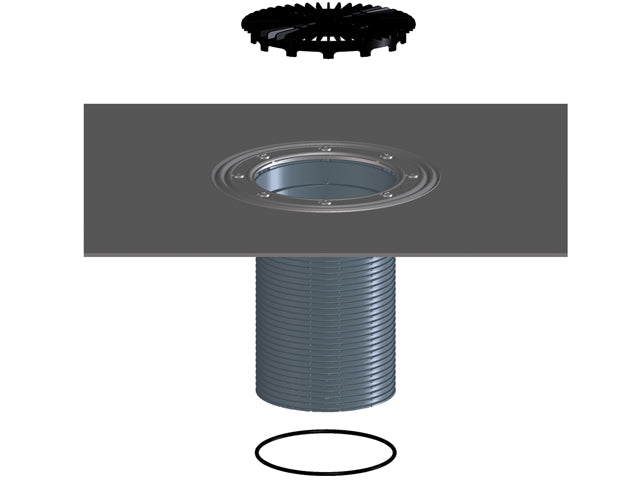

| HL8500H | Bitumen flange — Compatible with HL3100T / HL5100T; 200 mm; Material: PP, bitumen membrane; Weight: 1890 g | Official HL product page | Technical drawing (PDF) |
For exact dimensions and manufacturer documentation, refer to the linked HL product pages and technical drawings.
