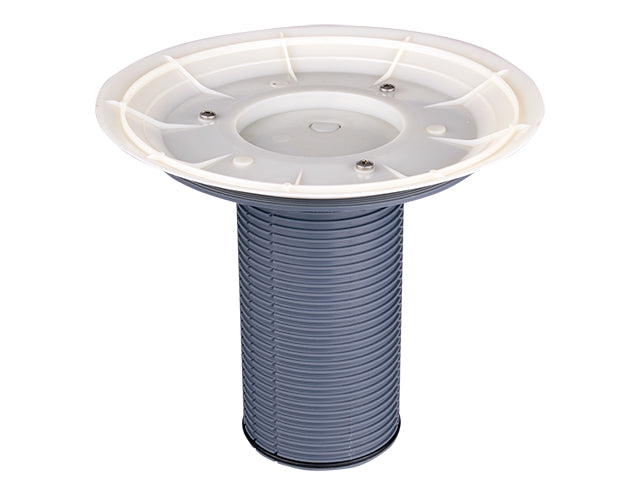

HL3020-Series Drain Extension with Protection Cover
HL3020-Series Drain Extension with Protection Cover
Flanged extension with sealing O-ring and deep pre-fitted construction cover, for HL3020-series drain assemblies.
Technical specifications
| Application | Drain / outlet extension |
|---|---|
| HL product family | HL85N-3020 |
| Available article codes | HL85N-3020 |
| Configuration | Deep protective cover, flange and O-ring |
| Material | PP |
| Dimensions / connection | Ø110 mm |
| Nominal extension length | 200 mm |
| Product weight | 432 g |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Configuration / dimensions | HL specification and drawing |
|---|---|---|
| HL85N-3020 | Deep protective cover, flange and O-ring — Ø110 mm; 200 mm; Material: PP; Weight: 432 g | Official HL product page | Technical drawing (PDF) |
For exact dimensions and manufacturer documentation, refer to the linked HL product pages and technical drawings.
