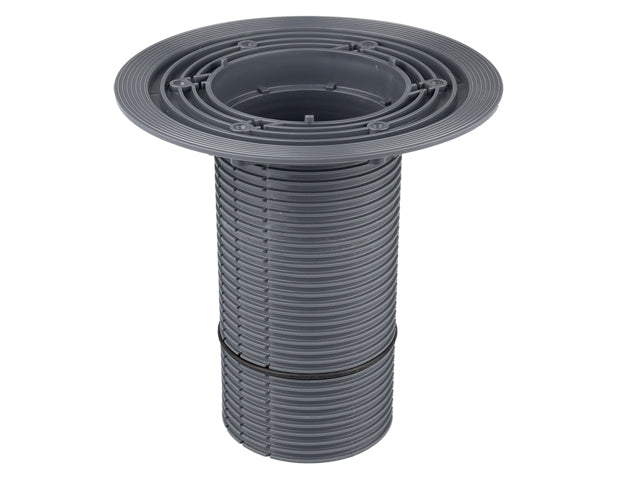

• HL85N — Standard flange and O-ring — HL official product photograph

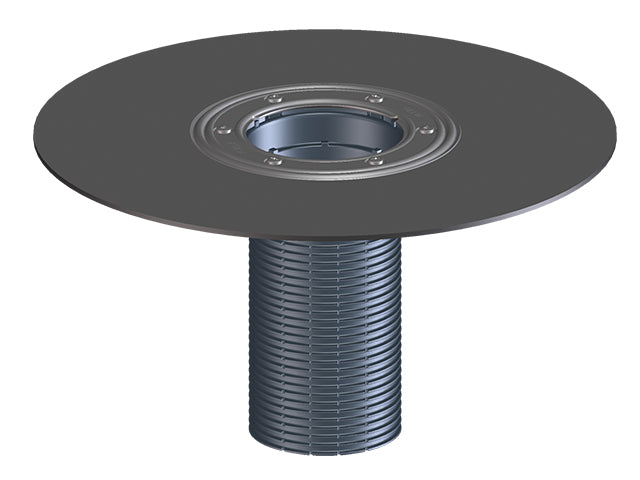

  • HL85NH — Bitumen membrane and O-ring — HL official product photograph
1 1

HL85N DN110 Drain Extensions

HL85N DN110 Drain Extensions

Configuration

HL85N extensions provide standard and bitumen-membrane configurations with Ø110 mm sealing connections.

Technical specifications

Application Drain / outlet extension
HL product family HL85N
Available article codes HL85N, HL85NH
Available configurations Standard flange and O-ring; Bitumen membrane and O-ring
Variant selection Select a configuration to choose the corresponding HL article number
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Configuration / dimensions HL specification and drawing
HL85N Standard flange and O-ring — Ø110 mm; 200 mm; Material: PP; Weight: 176 g Official HL product page | Technical drawing (PDF)
HL85NH Bitumen membrane and O-ring — Ø110 mm; 200 mm; Material: PP, bitumen membrane; Weight: 1290 g Official HL product page | Technical drawing (PDF)

For exact dimensions and manufacturer documentation, refer to the linked HL product pages and technical drawings.
