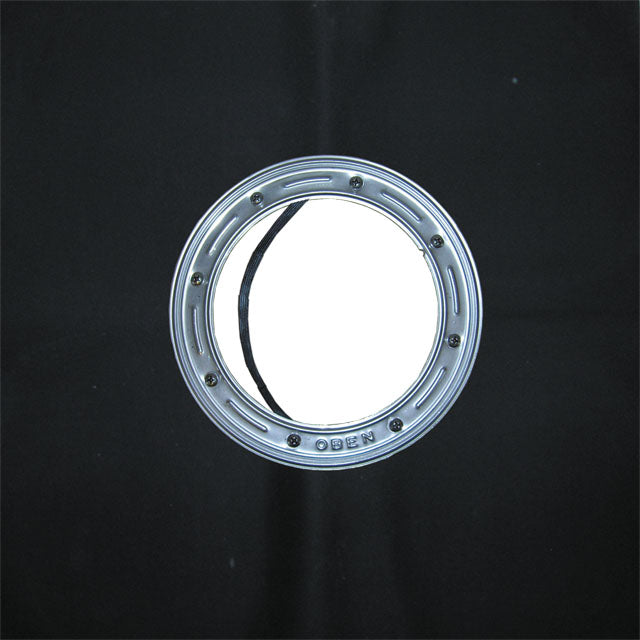

• HL86 — EPDM collar Ø500 mm — HL official product photograph

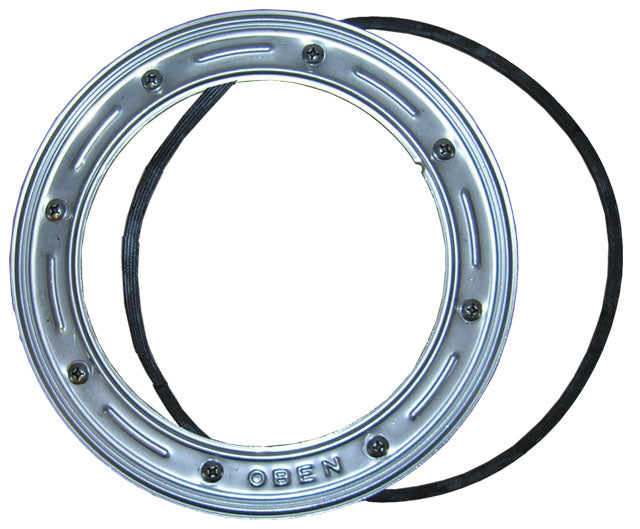

  • HL86.0 — Clamping ring, without membrane — HL official product photograph

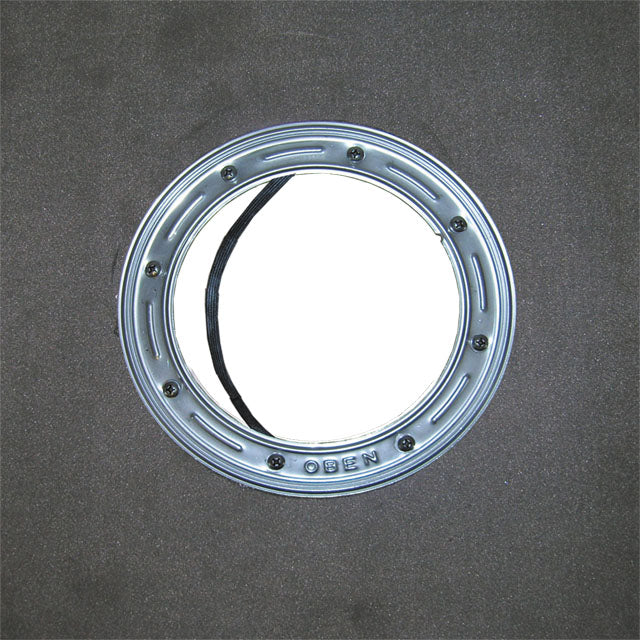

  • HL86.H — Bitumen membrane Ø500 mm — HL official product photograph

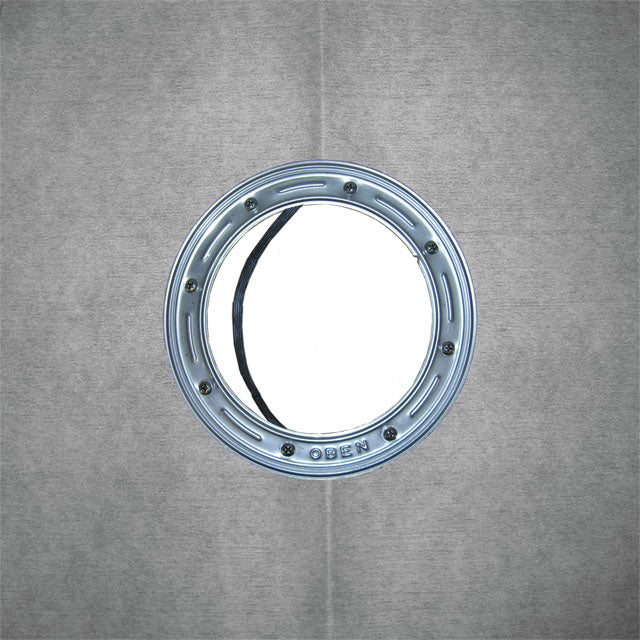

  • HL86.M — Fleece-laminated membrane — HL official product photograph
1 1

HL86 Waterproofing Kits

HL86 Waterproofing Kits

Configuration

HL86 waterproofing kits provide alternative membrane and clamping configurations for a common sealing interface.

Technical specifications

Application Waterproofing / sealing connection
HL product family HL86
Available article codes HL86, HL86.0, HL86.H, HL86.M
Available configurations EPDM collar Ø500 mm; Clamping ring, without membrane; Bitumen membrane Ø500 mm; Fleece-laminated membrane
Variant selection Select a configuration to choose the corresponding HL article number
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Configuration / dimensions HL specification and drawing
HL86 EPDM collar Ø500 mm — 278 × 198 mm / Ø500 mm; Material: Stainless steel, EPDM; Weight: 590 g Official HL product page | Technical drawing (PDF)
HL86.0 Clamping ring, without membrane — 278 × 198 mm; Material: Stainless steel; Weight: 340 g Official HL product page | Technical drawing (PDF)
HL86.H Bitumen membrane Ø500 mm — 278 × 198 mm / Ø500 mm; Material: Stainless steel, bitumen; Weight: 1590 g Official HL product page | Technical drawing (PDF)
HL86.M Fleece-laminated membrane — 278 × 198 mm / Ø500 mm; Material: Stainless steel, fleece-laminated foil; Weight: 590 g Official HL product page | Technical drawing (PDF)

For exact dimensions and manufacturer documentation, refer to the linked HL product pages and technical drawings.
