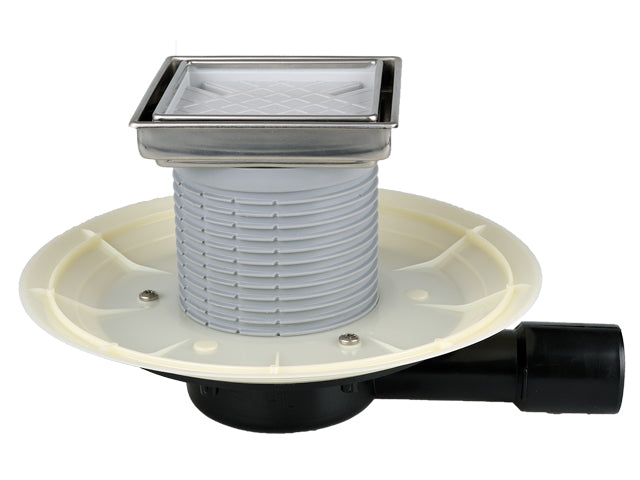

Horizontal Balcony and Terrace Drain with Tilable Frame and Flap Seal
Horizontal Balcony and Terrace Drain with Tilable Frame and Flap Seal
Horizontal balcony and terrace drain with waterproofing flange, frost-proof flap seal and adjustable tile-insert extension (10–80 mm). Supplied with a deep pre-installed construction cover.
Technical specifications
- HL model: HL90.2-3020
- Application: Balcony and terrace drainage
- Outlet orientation: Horizontal
- Outlet sizes: DN40 / DN50
- Body and component materials: PP; stainless steel
- Waterproofing connection: Flanged
- Grate / cover: Tilable stainless-steel frame 132 × 132 mm; tile insert 112 × 112 mm
- Trap / seal: Frost-proof flap seal
- Flow capacity: 0.50 l/s
- Installation height: 89 mm
- Load class: K3 – 300 kg
- Standard: EN 1253
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL90.2-3020 | DN40 / DN50 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
