Horizontal Balcony and Terrace Drain with Frost-Proof Flap Seal
Horizontal Balcony and Terrace Drain with Frost-Proof Flap Seal

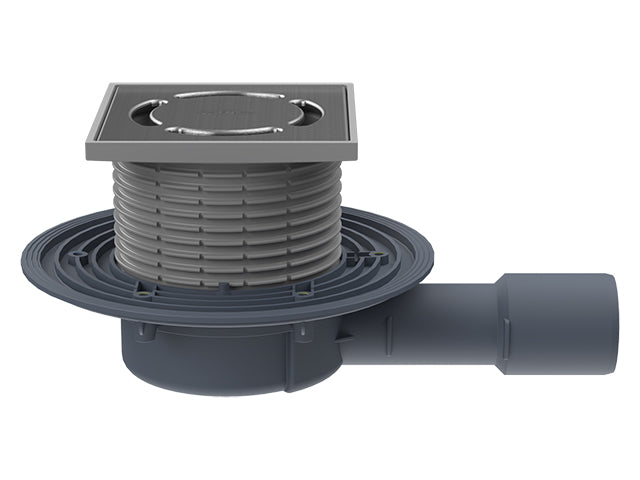

Low-profile horizontal balcony and terrace drain with waterproofing flange, frost- and drought-proof flap seal and adjustable grate frame (10–70 mm). Includes stainless-steel grate and construction cover.
Technical specifications
- HL model: HL90.2
- Application: Balcony and terrace drainage
- Outlet orientation: Horizontal
- Outlet sizes: DN40 / DN50
- Body and component materials: PP; stainless steel
- Waterproofing connection: Flanged
- Grate / cover: Stainless steel, 115 × 115 mm; frame 123 × 123 mm
- Trap / seal: Frost- and drought-proof flap seal
- Flow capacity: 0.50 l/s
- Installation height: 57 mm
- Load class: K3 – 300 kg
- Standard: EN 1253
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL90.2 | DN40 / DN50 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
