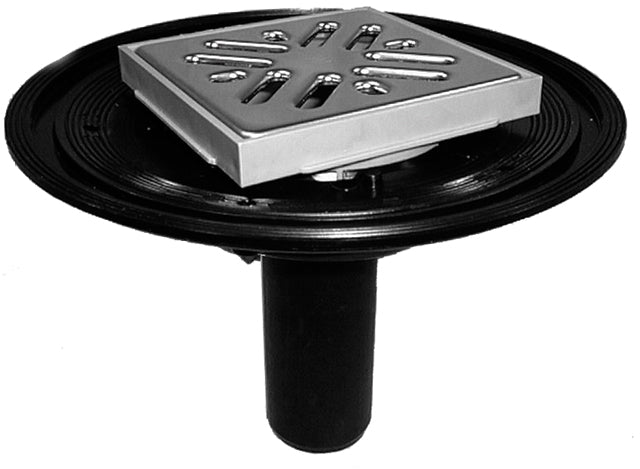

Vertical Balcony and Terrace Drain with Stainless Steel Grate
Vertical Balcony and Terrace Drain with Stainless Steel Grate
Compact vertical balcony and terrace drain with a waterproofing flange, adjustable plastic grate frame (12–38 mm), stainless-steel grate and strainer. Supplied with a construction cover.
Technical specifications
- HL model: HL92
- Application: Balcony and terrace drainage
- Outlet orientation: Vertical
- Outlet sizes: DN40
- Body and component materials: PE; stainless steel
- Waterproofing connection: Flanged
- Grate / cover: Stainless steel, 94 × 94 mm; frame 100 × 100 mm
- Trap / seal: Strainer
- Flow capacity: 0.50 l/s
- Installation height: 52 mm
- Load class: K3 – 300 kg
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL92 | DN40 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
