HL70G — Basement Drain with Cast-Iron Grate and Backwater Protection
HL70G — Basement Drain with Cast-Iron Grate and Backwater Protection

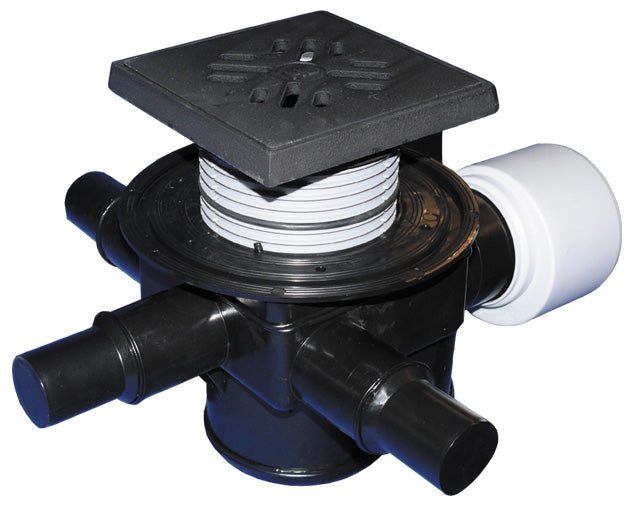

HL70G horizontal basement floor drain with backwater protection, three DN40/50 inlets and a cast-iron grate.
Technical specifications
| Application | Basement Drains with Backwater Protection |
|---|---|
| HL article codes | HL70G |
| Nominal connection | DN75/110 |
| Body material | PE |
| Side inlets | 3 × DN40/50 |
| Backwater protection | Integrated non-return closure |
| Rated flow | 1.12 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / variant | HL specification and drawing |
|---|---|---|
| HL70G | DN75/110 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
