HL134.1C Chrome-Plated Brass Connector Set
HL134.1C Chrome-Plated Brass Connector Set

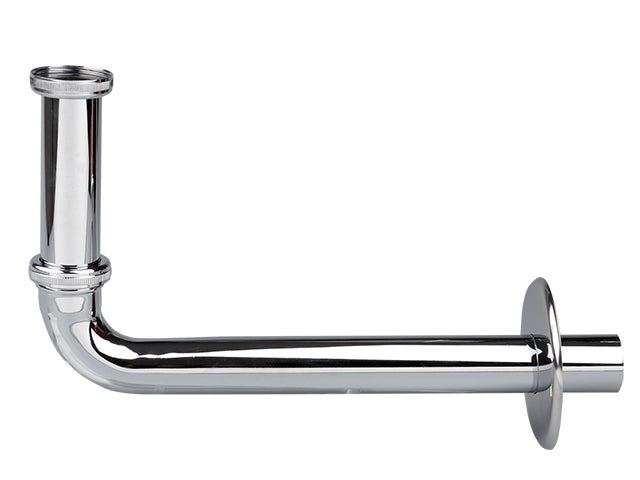

Chrome-plated brass 90° connector set for connecting a washbasin to a concealed waste trap. Features a 1 1/4-inch threaded connection, horizontal DN32 outlet, height-adjustable immersion tube and matching wall rosette.
Technical specifications
| HL article | HL134.1C |
|---|---|
| Application | Washbasin connection to concealed waste trap |
| Configuration | 90° angled connector with height-adjustable immersion tube and wall rosette |
| Connection | 1 1/4-inch threaded connection; horizontal DN32 outlet |
| Material / finish | Chrome-plated brass |
| Product weight | 367 g |
| EAN | 9003076311347 |
| Standard / reference | EN 274 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL134.1C | DN32 x 1 1/4-inch, chrome-plated brass | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
