HL520F Flat Shower Tray Trap with Stainless Steel Cover
HL520F Flat Shower Tray Trap with Stainless Steel Cover

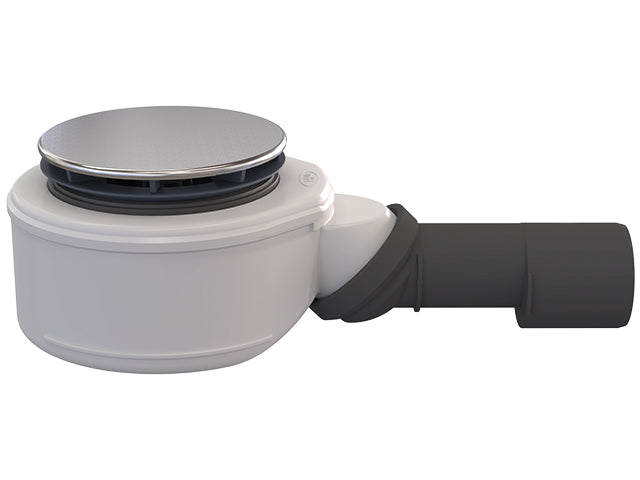

HL520F is a flat shower tray trap for shower trays with a Ø90 mm waste opening. Its DN40/DN50 ball-joint outlet can be adjusted continuously from horizontal to vertical, providing flexibility during installation. The trap features a stainless steel cover, a cleanable hair strainer and a removable trap insert. A protective cover that also serves as an installation aid is supplied.
Technical specifications
| Application | Flat shower tray trap for Ø90 mm drain openings |
|---|---|
| HL article code | HL520F |
| Outlet connection | DN40/DN50; ball-joint outlet adjustable from horizontal to vertical |
| Rated flow capacity | 0.60 l/s |
| Tray drain opening | Ø90 mm |
| Installation height | 73 mm |
| Cover | Stainless steel, Ø113 mm |
| Material | Polypropylene (PP), polyethylene (PE) |
| Trap and strainer | Removable trap insert and cleanable hair strainer |
| Water seal height | 50 mm |
| Standards | EN 274 |
| Product weight | 530 g |
| EAN | 9003076037452 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL520F | DN40/DN50; ball-joint outlet; Ø113 mm stainless steel cover | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
