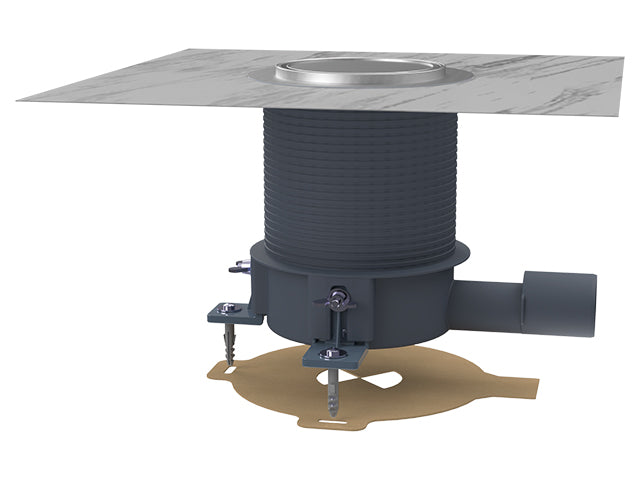

HL542Prblue Liquid Shower and Floor Drain with Primus Blue
HL542Prblue Liquid Shower and Floor Drain with Primus Blue
HL542Prblue is a horizontal shower and floor drain designed for coated floor finishes such as resin and microcement. Its round stainless steel frame can be adjusted from 1 to 7 mm to suit the finished surface thickness. The supplied waterproofing set combines fleece-covered sealing foil with a stainless steel flange for a secure connection to the floor coating. The drain includes the Primus blue hybrid odour barrier, a combined cover, extension rings and construction protection.
Technical specifications
| Application | Barrier-free showers and floor areas with coated finishes (e.g. resin or microcement) |
|---|---|
| HL article code | HL542Prblue |
| Outlet connection | Horizontal DN40/DN50 |
| Rated flow capacity | 0.40 l/s |
| Installation height | 60–207 mm (as stated in the HL technical-data table) |
| Surface height adjustment | 1–7 mm, round stainless steel frame |
| Grate / cover | Ø129 mm stainless steel combined cover |
| Waterproofing connection | Waterproofing set with fleece-covered foil and stainless steel flange |
| Odour barrier | Primus blue hybrid water and mechanical trap; odour protection even when the water seal is dry |
| Backflow protection | Resistant up to 0.5 m water column (per HL product documentation) |
| Material | Polypropylene (PP), stainless steel V4A |
| Load class | K3 – maximum 300 kg (per HL brochure) |
| Standards | EN 1253-8, EN 12056 |
| Product weight | 1,313 g |
| EAN | 9003076050154 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL542Prblue | Horizontal DN40/DN50; coated floor finish; Primus blue trap | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
