HL570 FlexBox Shower Tray Drain with Stainless Steel Cover
HL570 FlexBox Shower Tray Drain with Stainless Steel Cover

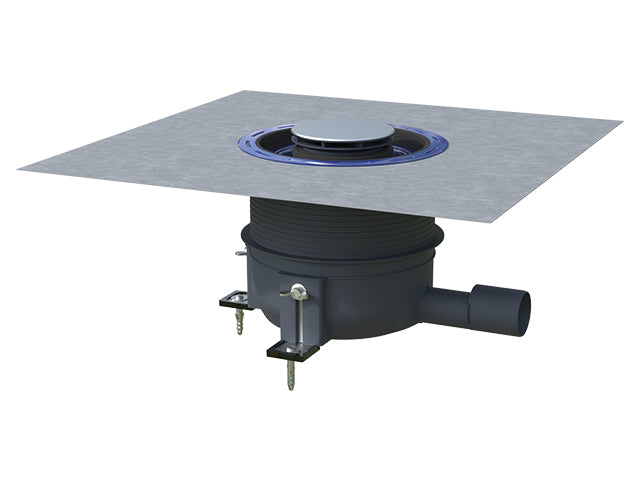

HL570 FlexBox is a complete installation kit for flat shower trays made of steel enamel, stone, acrylic or mineral cast, with a Ø90 mm drain opening. It combines a horizontal DN40/DN50 outlet, an integrated flexible waterproofing connection and a stainless steel cover. The drain body is installed in the screed; the flexible connector accommodates up to ±20 mm lateral deviation between the drain and shower tray. The kit includes the drain body, temporary protective cover, three fixing brackets, positioning template, sealing set, waste valve, installation key and removable siphon insert.
Technical specifications
| Application | Complete installation kit for flat shower trays with Ø90 mm drain openings |
|---|---|
| HL article code | HL570 |
| Outlet connection | Horizontal DN40/DN50 |
| Rated flow capacity | 0.50 l/s |
| Tray drain opening | Ø90 mm |
| Installation height | (80) 100–200 mm (250 mm) |
| Cover | Stainless steel, Ø113 mm |
| Material | Polypropylene (PP), thermoplastic elastomer (TPE), stainless steel |
| Load class | K3 – 300 kg |
| Positioning tolerance | Up to 40 mm total lateral adjustment (±20 mm from center) |
| Standards | ÖNORM B 3407 |
| Product weight | 1,329 g |
| EAN | 9003076049998 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL570 | DN40/DN50; stainless steel cover Ø113 mm | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
